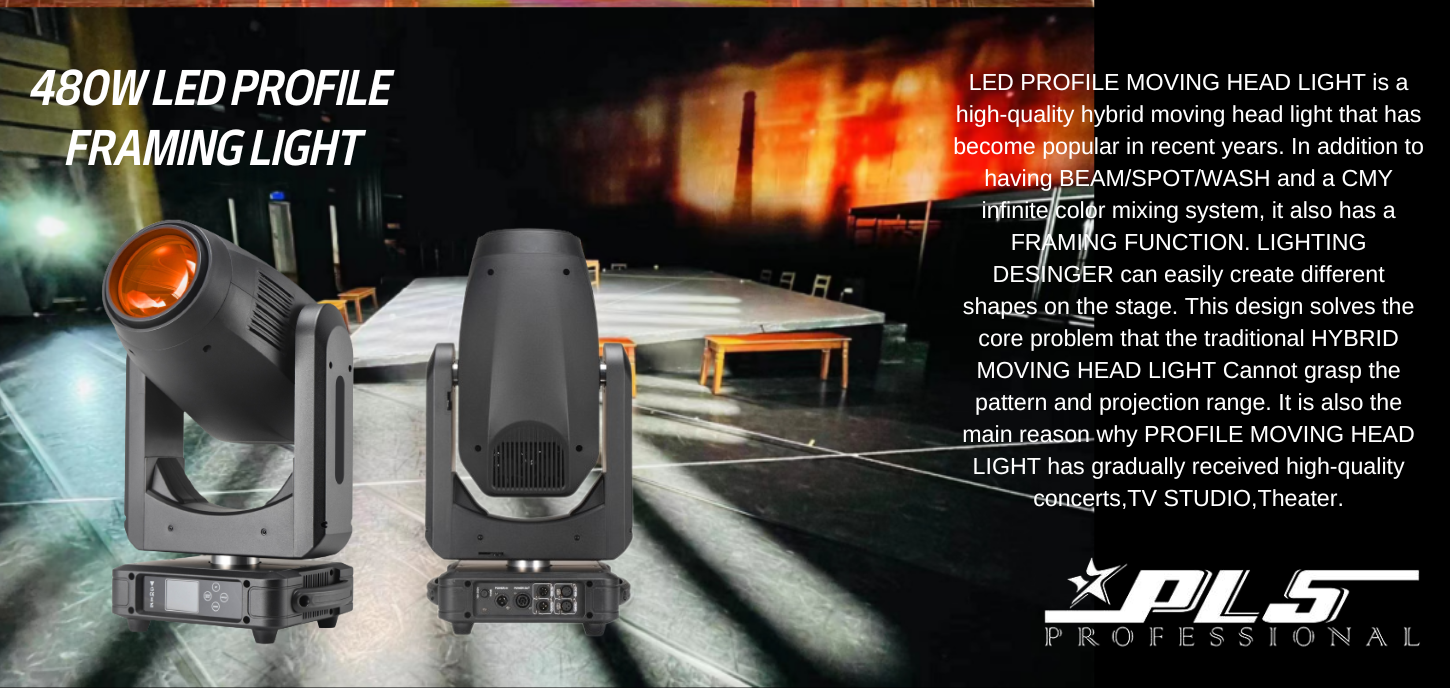

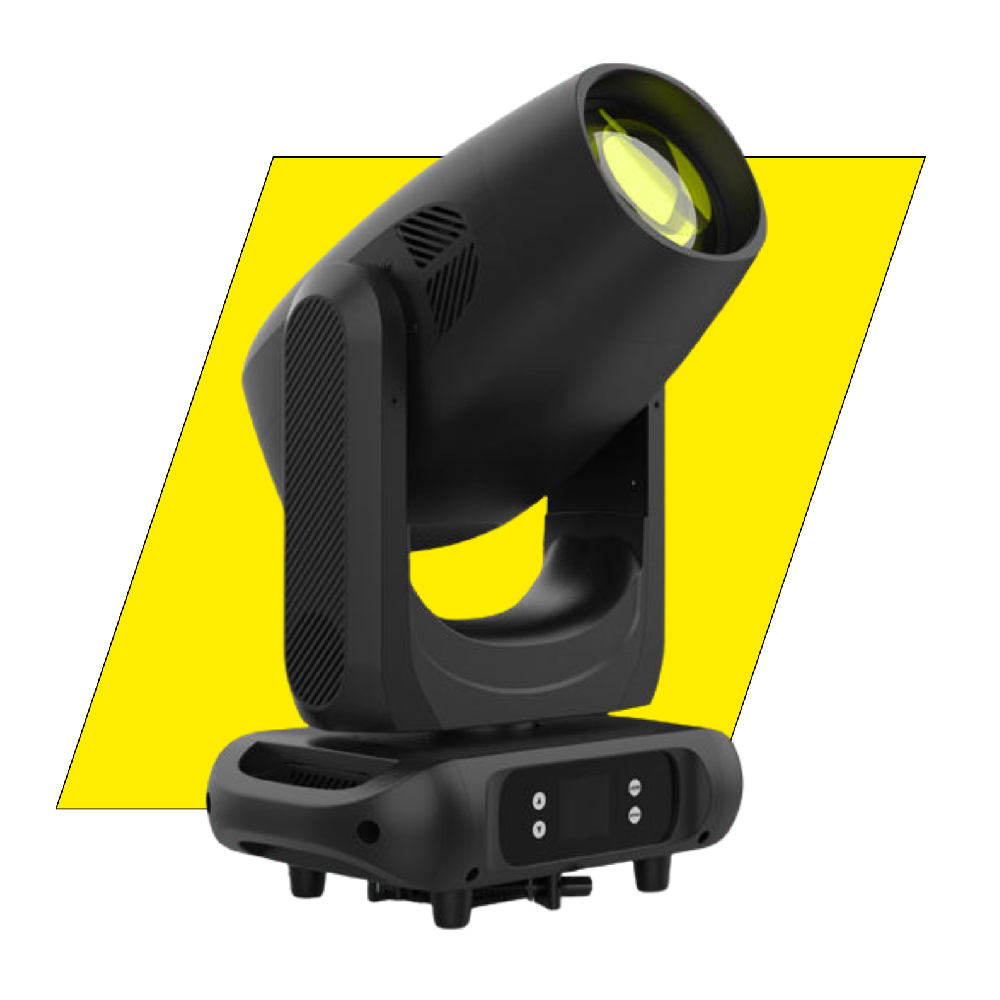

480 DABLO PROFILE LIGHT

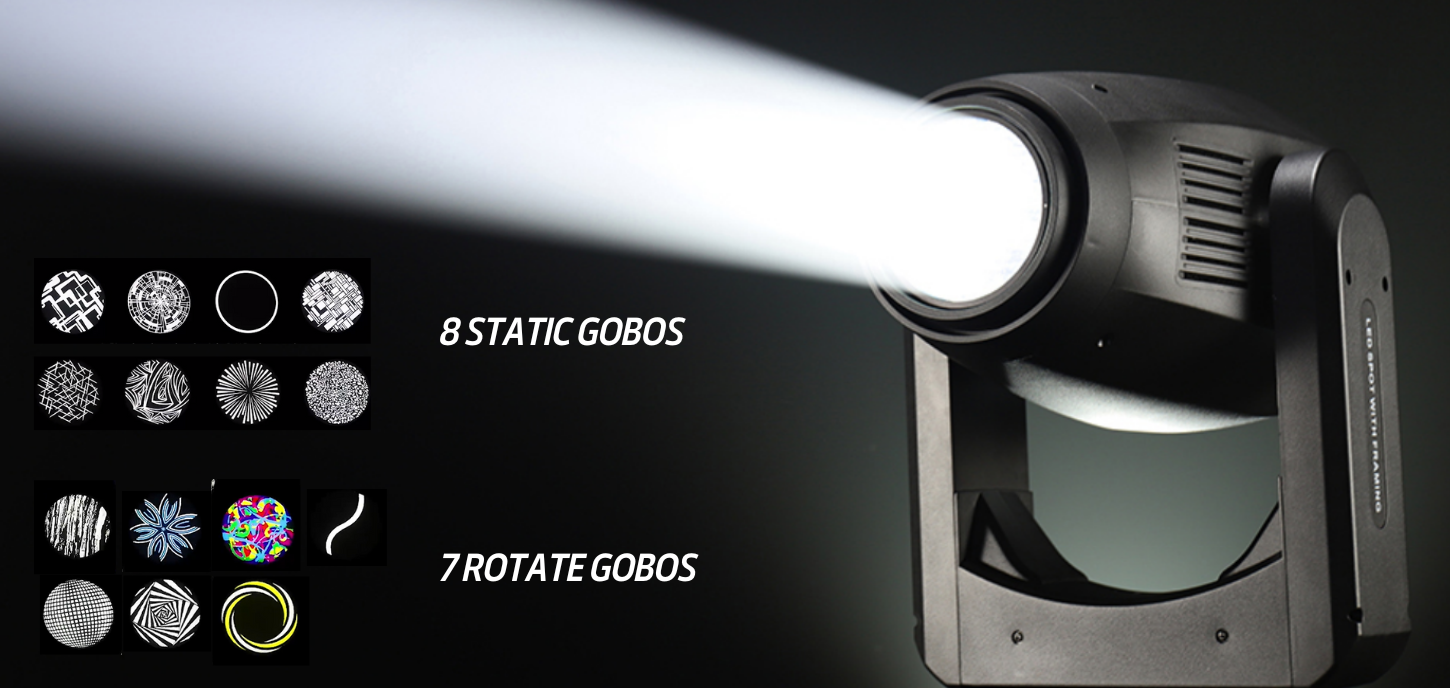

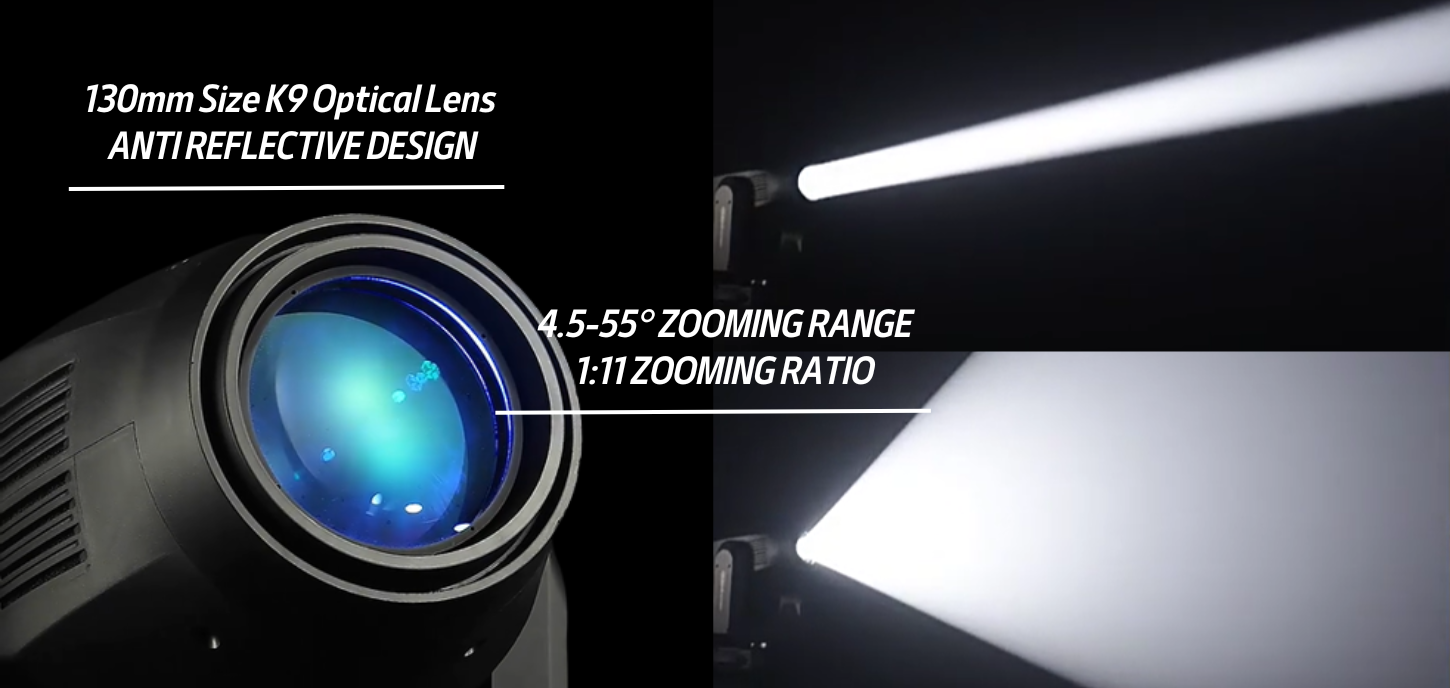

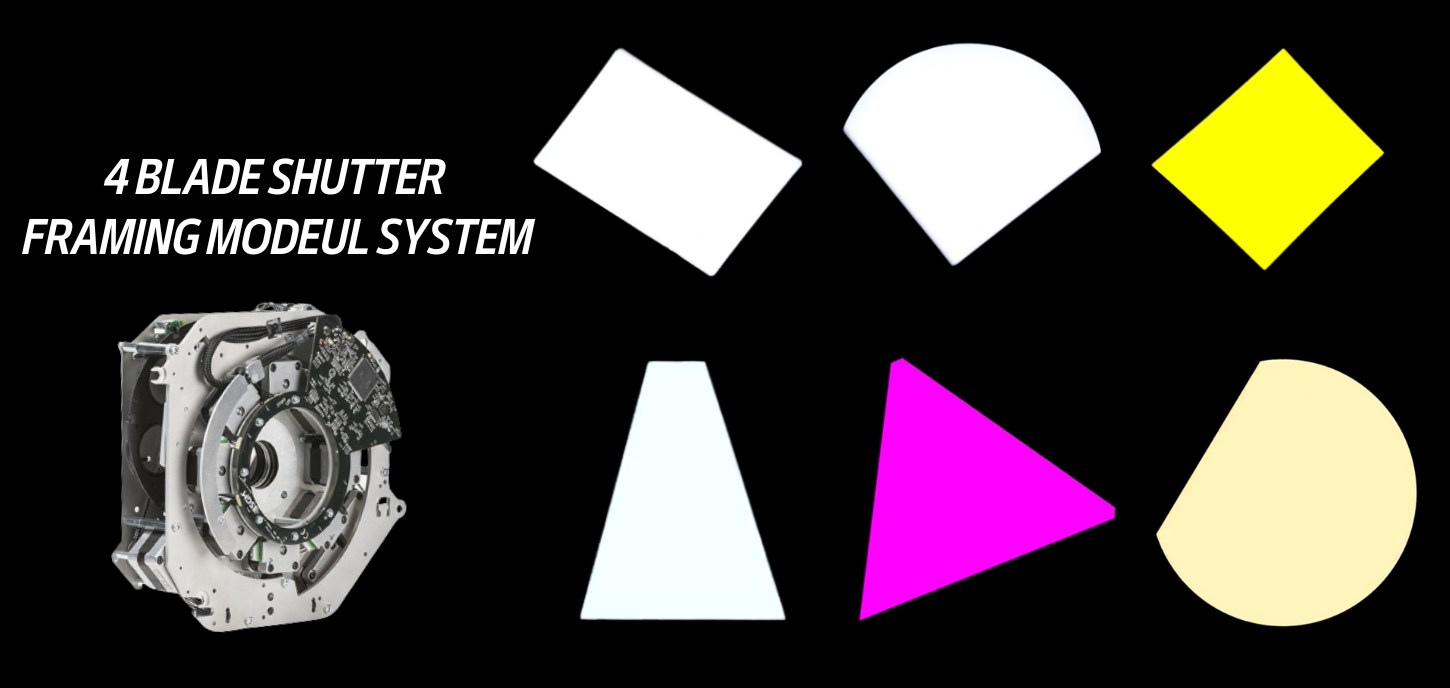

Movable profile head based on a 480W LED light source. Built-in advanced framing system based on 4 shutters (each of which can be precisely adjusted). A very high quality device, the ZOOM range in the values from 4.5 to 55 degrees, which allows you to work at smaller and larger distances. Additional advantages include color mixing in the CMY palette and linear CTO. An interesting addition is the animation wheel, which allows you to display a dynamic pattern in the GOBO area. All basic functions such as Dimmer, Focus, Frost, Shutter have not been forgotten here. On board 8 static, 6 rotating replaceable GOBOs and a classic dichronic color wheel with 6 filters. It is possible to purchase devices with a built-in ART NET connector (non-standard option). Product available on request.

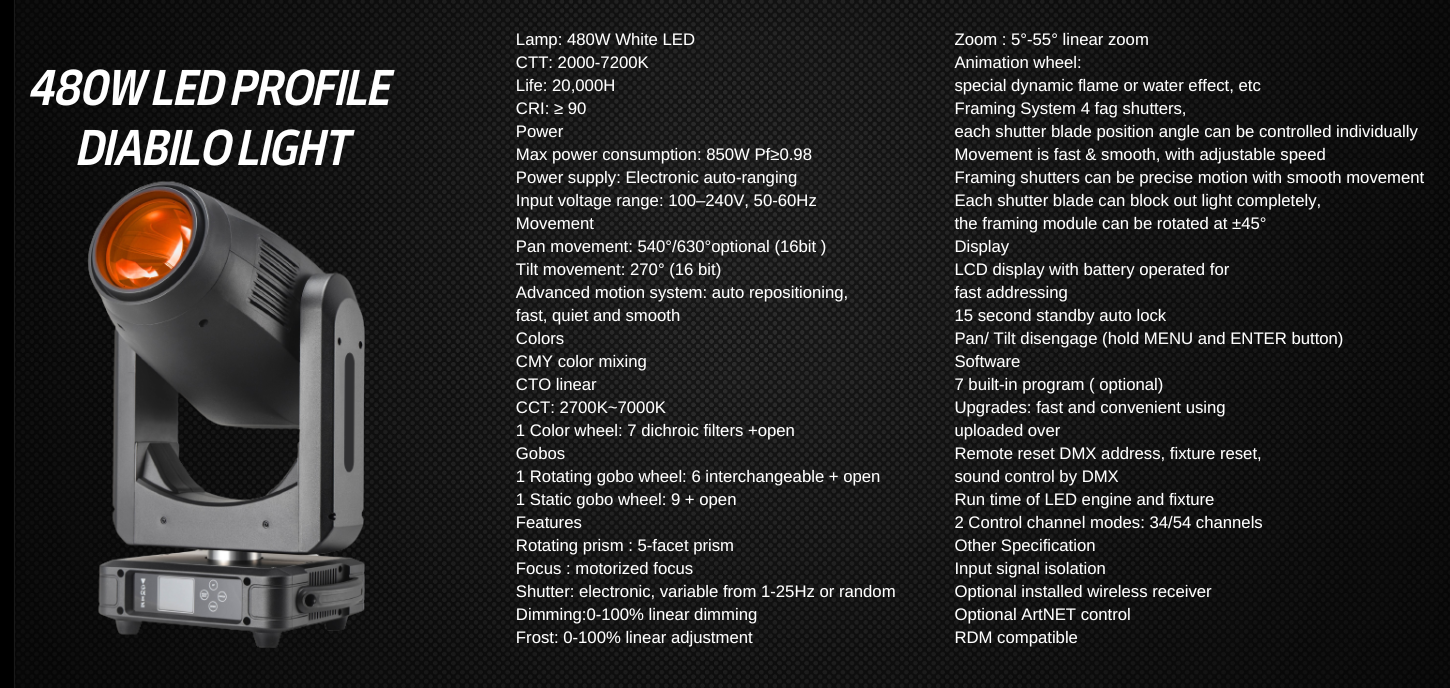

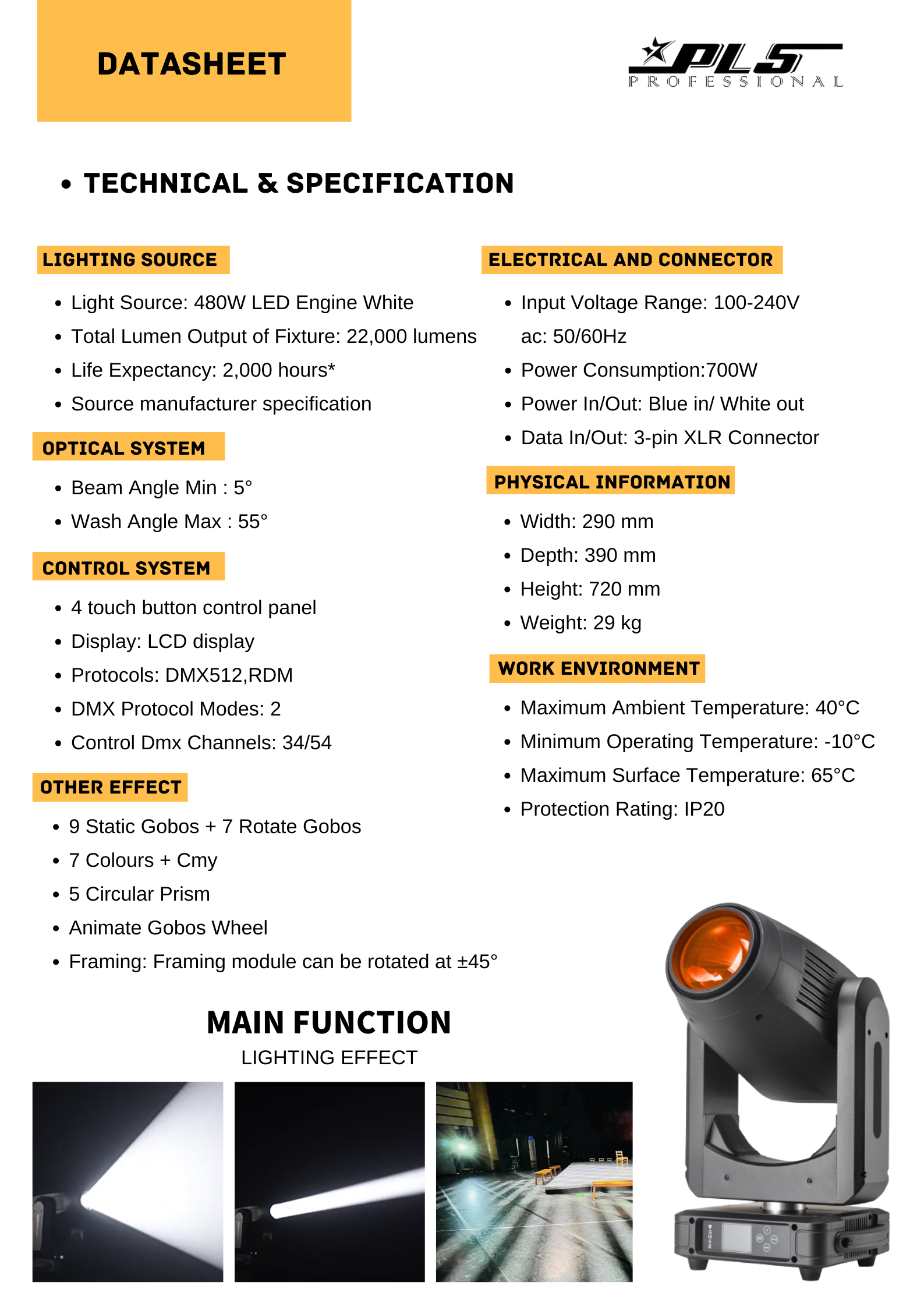

TECHNICAL SPECIFICATIONS


ACCESSORIES & RELATED PRODUCTS

DOWNLOAD

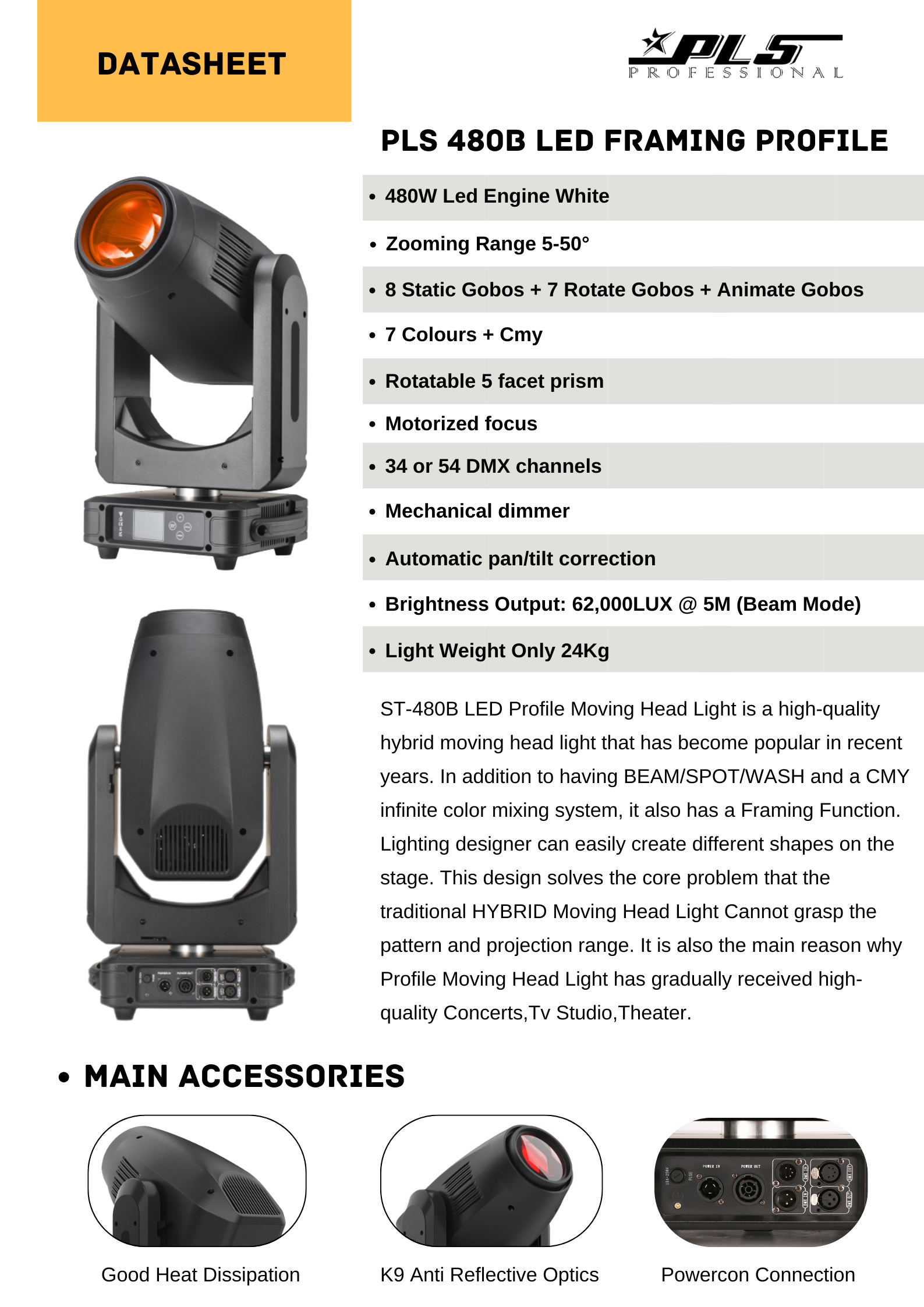

Data sheet & specs

File name File size Download
AURA 907001
Eclfwipvw_A4_DATASHEET_(EN).pdf 606417

User manual

File name File size Download
User manual.pdf 2047345

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download
2
3
4
